Sliding Door Hanging KIT

• Sliding Door Kit Suitable for door up to 100KG.

• The speciality of our door sliding kit is it's impossible that the door casters come out from sliding track once you lock both ends with a wing nut.

• You can screw the track into ceiling or wall as per your requirements.

• Sliding casters or wheels would completely be hidden inside the track & would not be visible.

• Very smooth sliding of the door even with the pour of the finger you can slide door left to right.

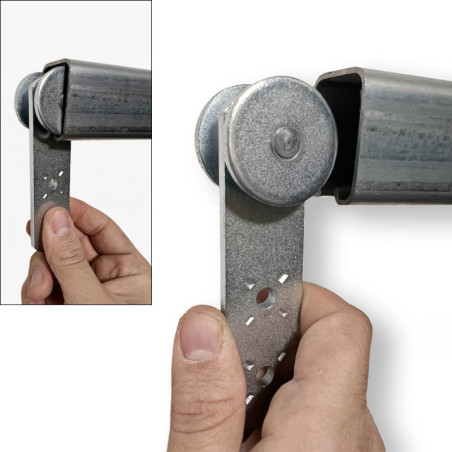

• Each sliding door hanger has the Ball Bearing inside for smooth movement of the door.

• You can paint track with the wall colour.

Kit Includes:

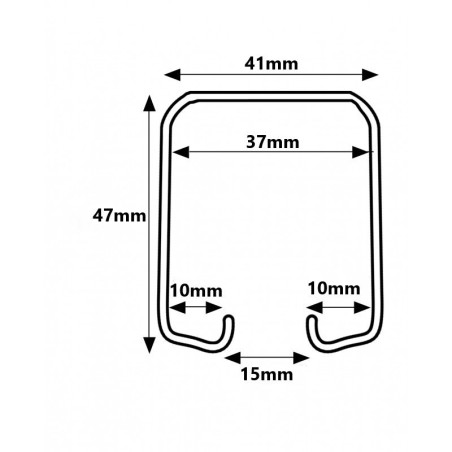

1. 2 Meter solid steel track silver QTY 1 (We can provide up to 4-meter long track on request.

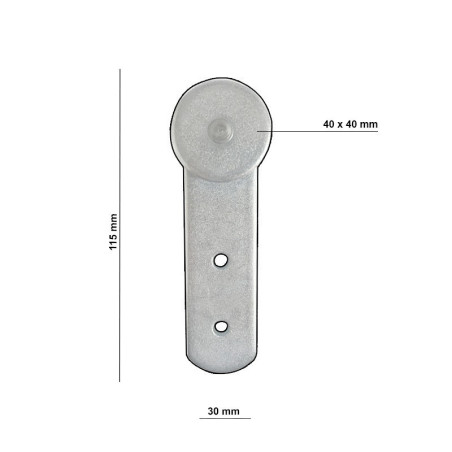

2. Sliding door hanger QTY 2 ( You need 3 sliding door hanger if the door is more than 3 feet wide.)
3. Small screws to attach sliding door hangers with the door. QTY 4
4. Screw & plugs QTY 6+6 (We just provide standard screws & plugs but you can use your own according to your wall or ceiling.)
5. Wing nuts to close the track ends QTY 2

Very easy to install in a few minutes you can hang the door & start using.

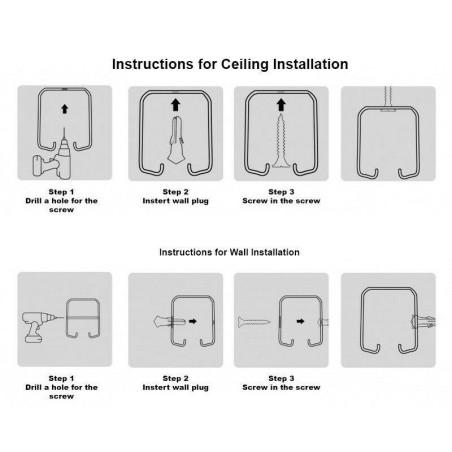

Just follow the following steps:

1) If the track is too long then cut the track with hacksaw according to your requirement.

2) The track has pre-drilled holes just mark the holes with a marker on wall or ceiling.

3) Make holes with drill machine into the wall or ceiling.

4) Put plugs inside the holes & tight the track on the wall or ceiling. If you are screwing the track into the wood then you don't need plugs.

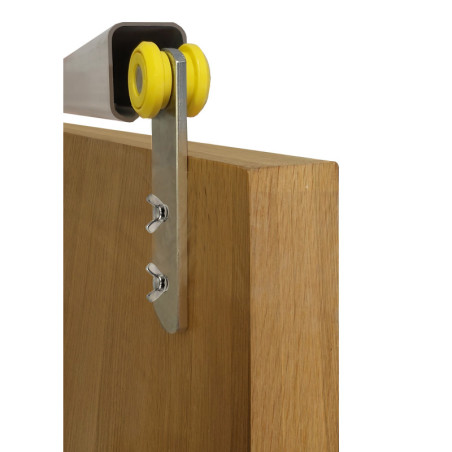

5) Screw in sliding door hanger with casters near each top end of the door.

6) Lift the door & slide into the track.

7) Lastly, you lock both ends of the track with wing nuts.

8) You cannot remove the door from the track without unlocking the wing nuts.

For any need of hanging or custom made solutions please call Habib on 02079986911 OR 07946655177
